Druckschrift: 121-0 Thermometer

leaflet: 121-0E Meteorological Thermometers

Standard Thermometers for Psychrometer (August type): (see leaflet 131-0E “Psychrometers” too)
• filling: free of mercury with propylene carbonate = Prop
• ACCU-SAFE technology
• ø15 mm

 division in 0.2°C:
    No. AUG-30+50/0,2 range -30 to +50°C
    No. AUG-20+60/0,2 range -20 to +60°C
    No. AUG-35+45/0,2 range -35 to +45°C

 division in 0.5°C:
    No. AUG-30+50/0,5 range -30 to +50°C
    No. AUG-20+60/0,5 range -20 to +60°C
    No. AUG-35+45/0,5 range -35 to +45°C

Extremthermometers:
Maximum thermometer
with mercury filling, ø17/18 mm

 division in 0.2°C:
    No. MAX-30+50/0,2 range -30 to +50°C
    No. MAX-20+60/0,2 range -20 to +60°C

 division in 0.5°C:
    No. MAX-30+50/0,5 range -30 to +50°C
    No. MAX-20+60/0,5 range -20 to +60°C

Minimum thermometer
with alcohol filling, ø17/18 mm

 division in 0.2°C:
    No. MIN-30+50/0,2 range -30 to +50°C
    No. MIN-20+60/0,2 range -20 to +60°C
    No. MIN-35+45/0,2 range -35 to +45°C

 division in 0.5°C:
    No. MIN-30+50/0,5 range -30 to +50°C
    No. MIN-20+60/0,5 range -20 to +60°C
    No. MIN-35+45/0,5 range -35 to +45°C

No. T23 UG14 Support
combined holder for maximum- and minimum-thermometer

No. TH48 UG03 holder for one maximum- or minimum-thermometer

No. T23 UG01 Tripod with rod
for psychrometer- and max-min-thermometers


Grass Thermometer
No. 52gk Holder for Maximum and Minimum Thermometer
               for measuring the maximum and minimum air temperature close to the earths surface.
               with support rod, combined holder for two thermometer (T23 UG14) and radiation screen
               measuring height adjustable from 2 to 12 cm



No. 52g “Grass Minimum Thermometer”
 as No. 52gk but with holder for only one thermometer (TH48 UG03)
 please order minimum thermometer seperately








Soil Thermometer
range: -25...+60 °C, divided in 0.2°C
diameter 17 resp. 18 mm,  weight: 0.1-0.3 kg, total length: 345 mm
Filling: free of mercury with propylene carbonate = Prop
with ACCU-SAFE technology

No. ST/0   depth:  0 cm
No. ST/2   depth:  2 cm
No. ST/5   depth:  5 cm
No. ST/10 depth: 10 cm
No. ST/15 depth: 15 cm
No. ST/20 depth: 20 cm
No. ST/30 depth: 30 cm
No. ST/50 depth: 50 cm


No. 51 Stand for 1 soil thermometer
No. 51a Stand for 2 soil thermometers
No. 51b Stand for 3 soil thermometers
No. 51c Stand for 5 resp. on request 6 soil thermometers














Deep-Soil Thermometer
in plastic sheath, with protective cap and insertion tube.







Filling: free of mercury with propylene carbonate = Prop
with ACCU-SAFE technology
standard range: -10...+30°C, divided in 0.1°C
on special request: -20...+60°C divided in 0.2°C

No. 61/30k   depths: 10/20/30 cm
No. 61/50k   depth:   50 cm
No. 61/100k depth: 100 cm
No. 61/200k depth: 200 cm
No. 61/300k depth: 300 cm


No. spare thermometer for deep-soil thermometer
No. DS-10+30/0,1 range: -10…+30°C, divided in: 0.1°C
No. DS-20+60/0,2 range: -20…+60°C, divided in: 0.2°C

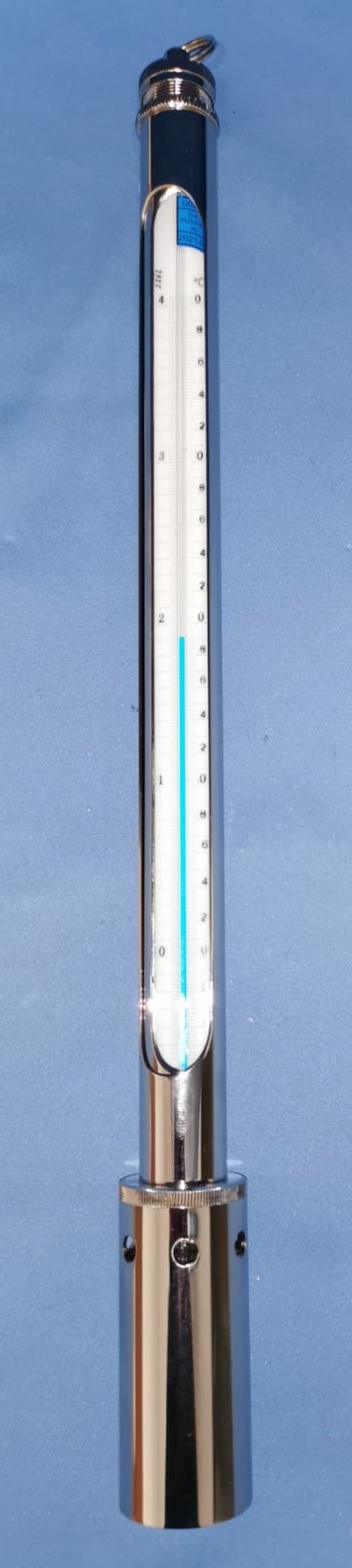

No. 53c - Water Thermometer in nickel holder with scoop
Tank and Dipping Precision Thermometers with integrated dipper for sampling and simultaneous temperature measurements
consisting of: No. 53f and 53d
filling free of mercury: Propylene carbonate with ACCU-Safe technology
available ranges:
 • No. 53f: - 5 ... + 40 : 0,2°C or
 • No. 53g: -10 ... + 50 : 0,2°C

 Divisions 0.2°C
 Error Max: ±0,4°C resp. acc. certificate
 column: blue
optional available: with traceable DAkkS-calibration (DIN EN ISO IEC 17025)
@ 2 calibration points (-5°C and +40°C) (additional points on special request possible)

Protection case with rotary scale cover (No. 53d)
• completely mounted in slotted brass armour with scoop vessel,
  double protection subject to a second rotatable metal sheath
• standard: brushed and lacquered brass version
  optional: nickel plated version
