Druckschrift: 142-0 Thermohygrograph

leaflet: 142-0E Thermohygrograph

folleto: 142-0S Thermóhygrografo

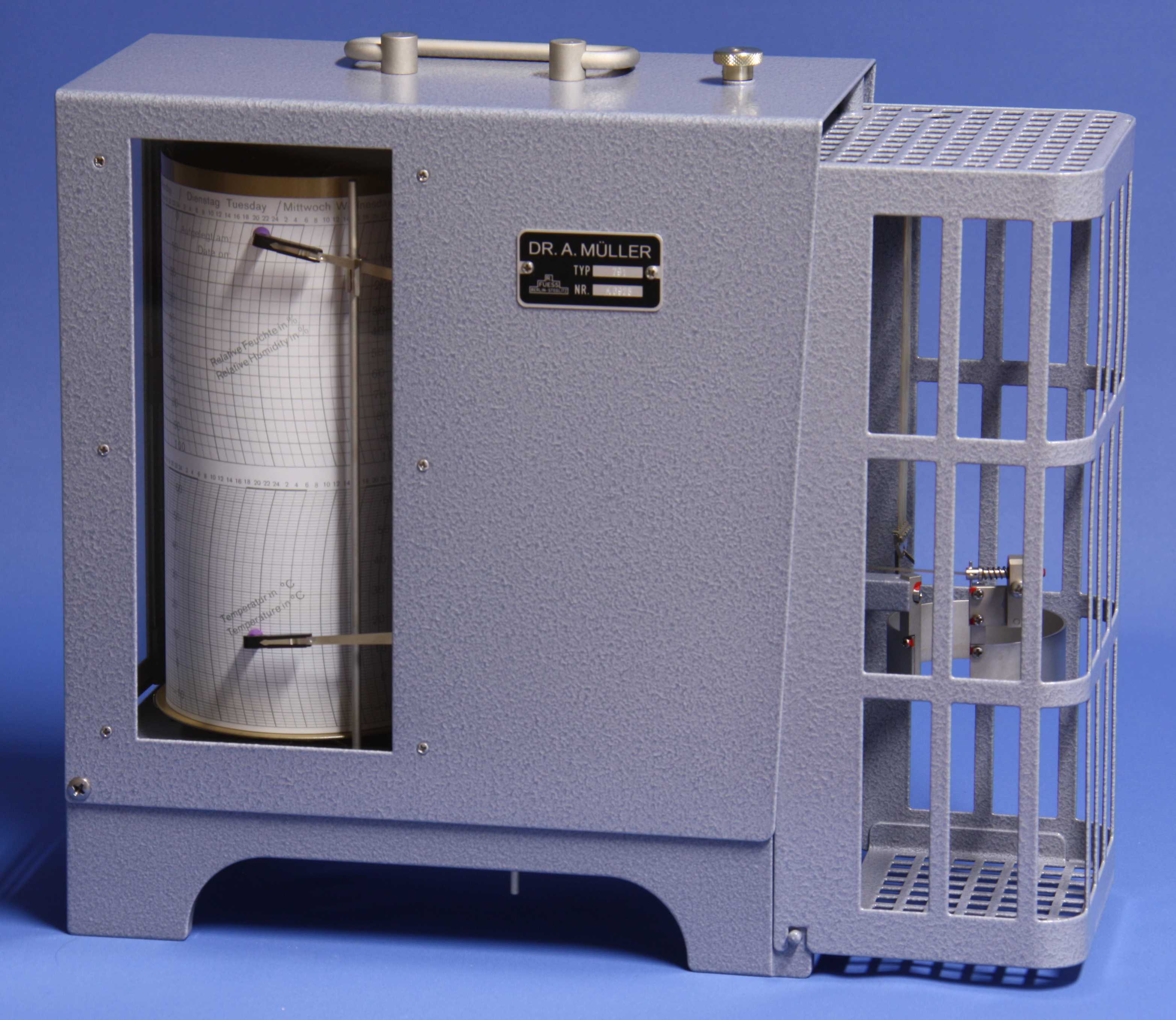

No. 79t Thermohygrograph

The Thermohygrograph records temperature and relative humidity of the atmosphere on a common chart.
These two important climatic factors play a decisive role in the meteorological and climatological investigation.

It has a grey hammertone finished stainless steel housing and glas windows and  outside arranged measuring elements. The measuring instrument is characterized by high accuracy and durability for longllife operation .
The high precision model uses a special preparated bimetallic ring and 5 bundels of 26 human hairs.

The Measuring accuracy of bimetal and strand of hairs correspond to highest requirements.
The limits of error in the measurement of humidity amount to ±2.5 % of the extent of the measuring range.

Temperature is recorded with a highest error of about ±0.2°C in the case of mean temperatures
At higher temperatures above 50°C the accuracy is ±0.5 °C.

Equipped is the instrument with a high quality mechanical spring driven movement in coloured brass drum.

The measuring range for relative humidity is 0...100% rh.

Different temperature ranges are available with a span of 55°C (higher resolution) resp. 80°C (extended range)

Temperature ranges:
-30...25°C
-20...35°C
-10...45°C
   0...55°C
-45...35°C
-35...45°C
-25...55°C
-15...65°C
 -5...75°C

Time of drum rotation: daily or weekly

Recording drum:
     Ø 93.3 mm
     height: 186 mm
     height of recording: 2 x 80 mm
     time of running: app. 9 days

accessories:
    2 fiber pens
    1 wetting cloth
    1 set of recording charts
      (100 charts for daily or weekly rotation)

Dr. Alfred Müller - Meteorologische Instrumente KG
Chausseestraße 39 / 42c, D-15712 Königs Wusterhausen
Telefon: +49 (0)3375 9025-32 Telefax.: +49 (0)3375 9025-36
e-Mail: info@meteomueller.de
