No. CHM 15K Ceilometer and visualization software

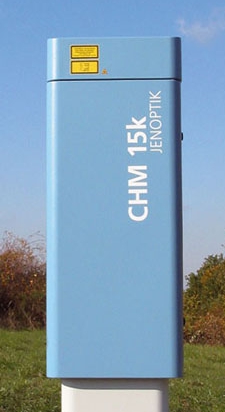

The CHM 15K laser ceilometer measures highly resolved laser backscatter data from atmospheric aerosols or droplets using LIDAR. From the measured data aerosol height profiles, cloud base heights, penetration depths, mixing layer height, vertical visibility and cloud amount are determined.
Within its operating range of up to 15 kilometers (50,000 feet), it reliably detect multiple cloud layers and cirrus clouds.

Measuring parameters

Measuring principle: Optical (LIDAR)
Measuring range (CBH - Cloud Base Height): 5 m - 15 000 m  (16 ft ... 50 000 ft)
Accuracy²: ± 5 m(± 16 ft)
Range Resolution: 5 m (16 ft)
Sempling rage: 100 MHz
NetCDF raw data resolution:
     15 m (full range, compact file sizes)
     5 m (5 m to 150 m range)
Time to measure: 5 s ... 600 s (programmable)
Targets: Aerosols, clouds
Quantities to be measured:
    - CBH, preset: 3 layers; maximum 9 layers
    - Cloud penetration depth
    - Cloud amount and sky condition index
    - Vertical visibility (VOR)
    - Height of aerosol layer
    - Aerosol backscatter profiles
Light source: Nd:YAG solid-state laser, wavelength 1064 nm

²measured on hard target in 10 km distance

Interfaces and software for data output and device configuration

Standard interface: RS485, LAN
Optional interfaces: RS232 of Modem V.21, V.22, V.22bis
Communication
    - LAN Port: Web-Interface
    - Serial Port: Jenoptik DataClient Software or standard terminal programs
Optional software:  JO-Visual Software for convenient visualizing measured results

Electrical parameters

Power supply:
     standard: 230 V(AC), ±10 %
     optional: 110 VAC, 115 VAC, ±10 %
Power consumption:
    - 250 W (standard)
    - 800 W (in maximum heating mode)
UPS functionality (optional): Internal backup battary for electronics, > 1 hrs

Operating safety

Environmental requirements: ISO 10109-11
Laser protection class: 1M according to IEC 60825-1:2007
Internal protection class: IP 65
EMC: Class B, IEC 61326-1
Electrical safety: IEC 61010-1
Certifications: CE

Operating conditions

Temperature: -40 °C ... +55 °C
Relative humidity: 0 % ... 100 %
